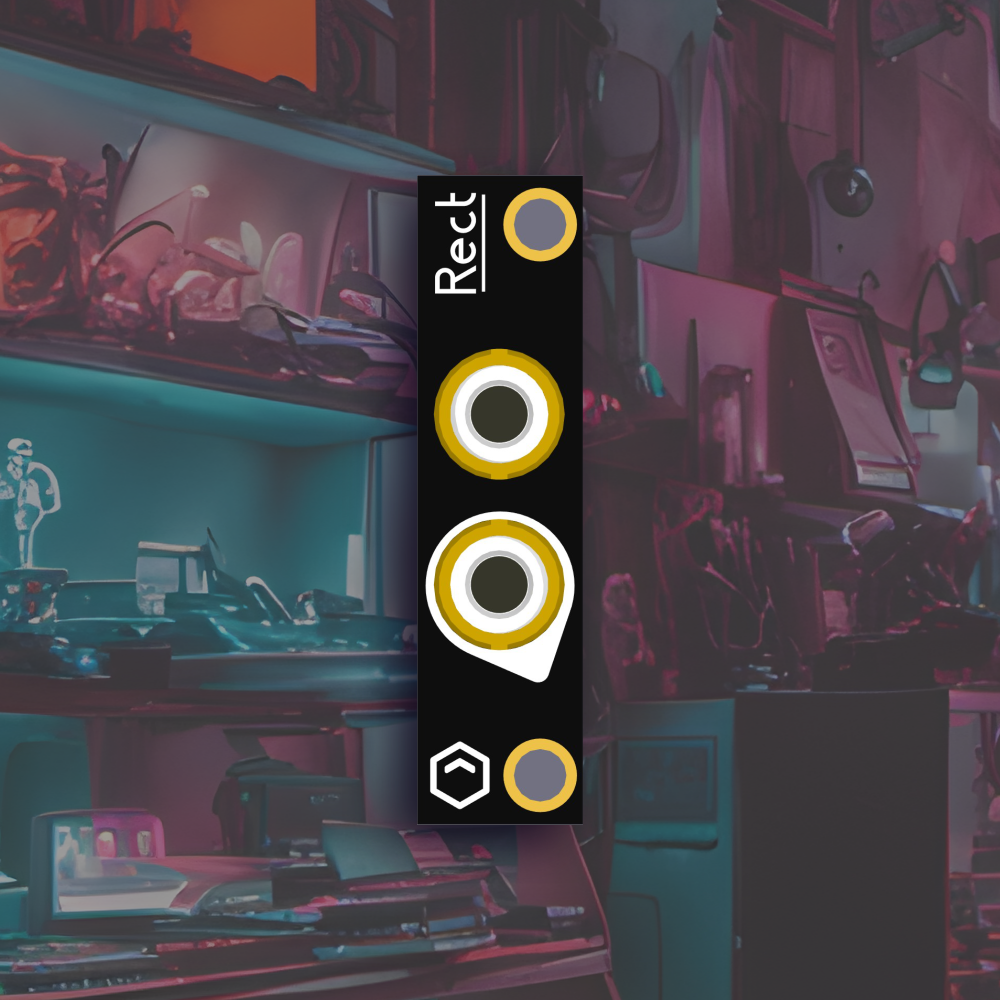

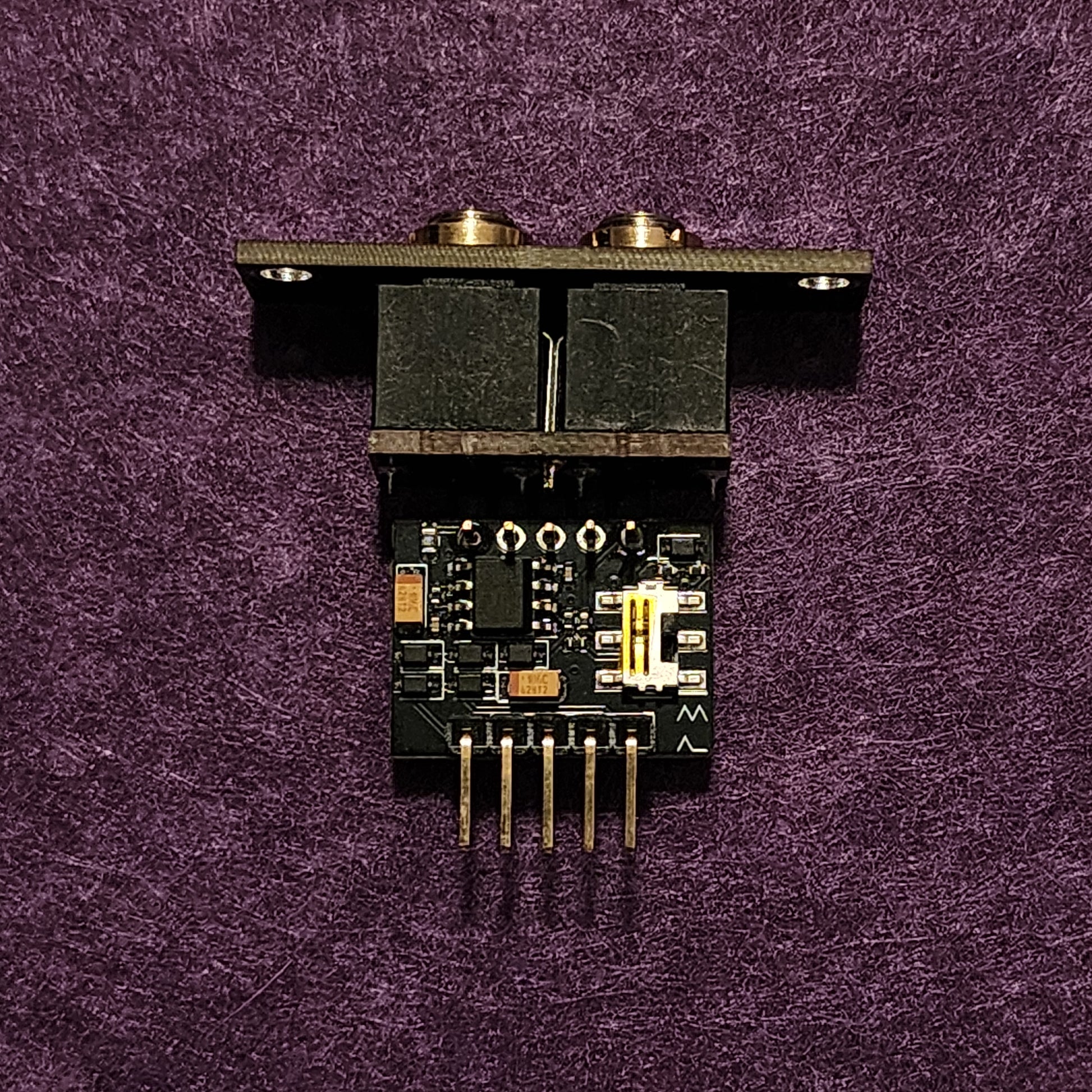

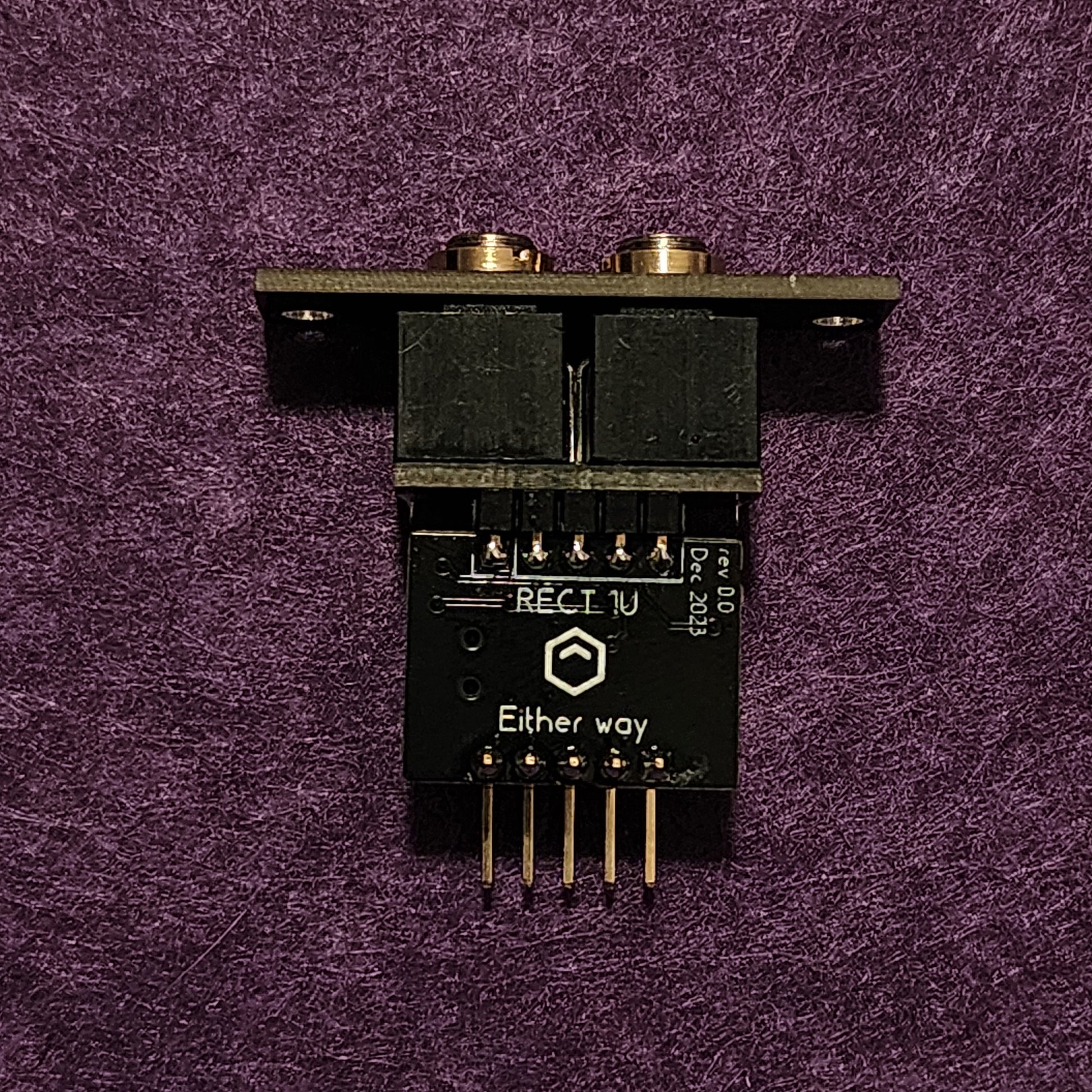

Rectify is a straightforward rectifier module. Take a bipolar input signal and either half wave (negative signal is clipped at 0v) or full wave (negative signal is flipped back positive) rectify it! The type of rectification is selectable with the small switch on the mainboard - toward the power header is full wave, toward the panel is half wave. Rectify is fully DC coupled, so it works with modulation signals just as well as with audio!
Width: 2hp
Depth: 45 mm (with strain-relief) 40 mm (with no strain-relief)
Either Way power: +12v: 2mA -12v: 3mA +5v: N/A
Our modules DO NOT include mounting screws! With the variety of preferences and sizes, we have decided not to provide mounting screws with our modules.
