Hey!

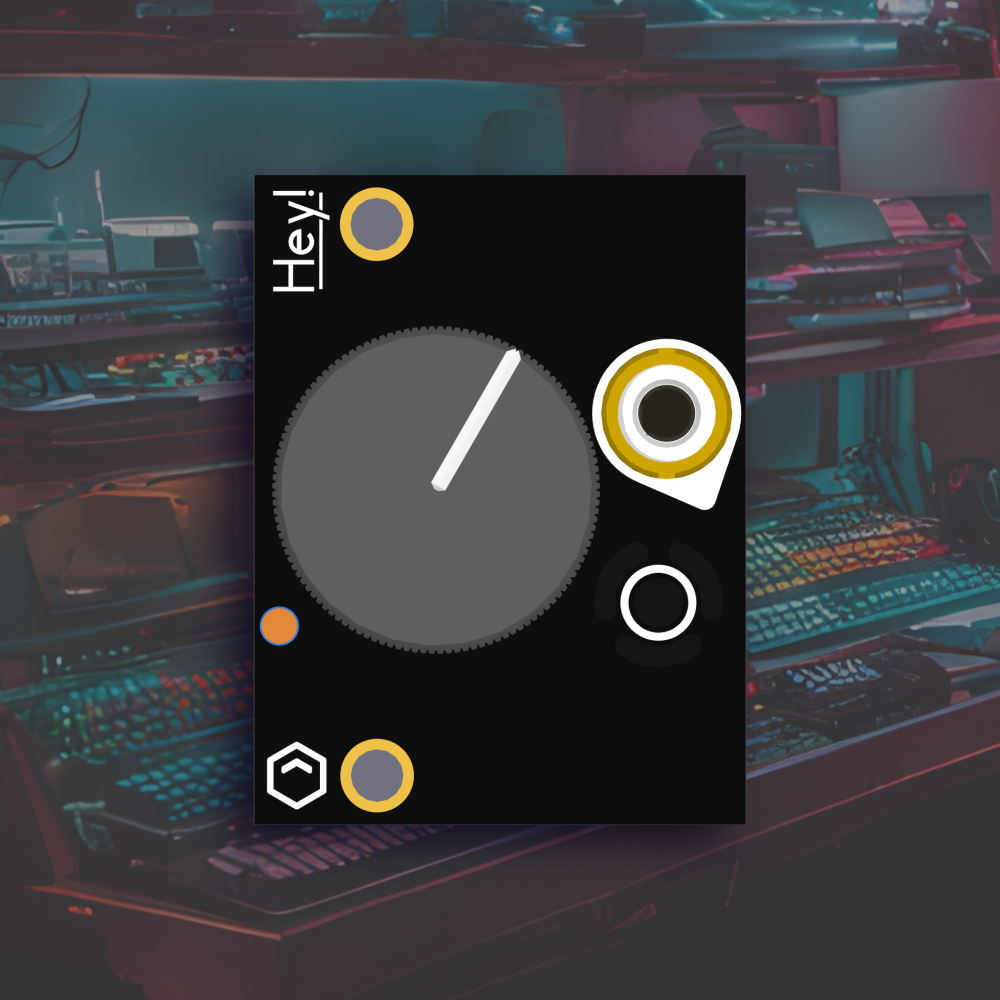

Hey is a simple condenser microphone module for your intellijel format 1u row! The trimpot (adjustable from the front panel with a small flathead screwdriver) adjusts the primary amplifier stage's gain, while the large knob controls the level fed to the secondary amplifier stage before the module's only jack - the output! Inspired by a number of other modules with onboard condensers, this module is intended to provide that functionality in a compact, standalone module.

Width:
6hp

Height:
1u

Depth:

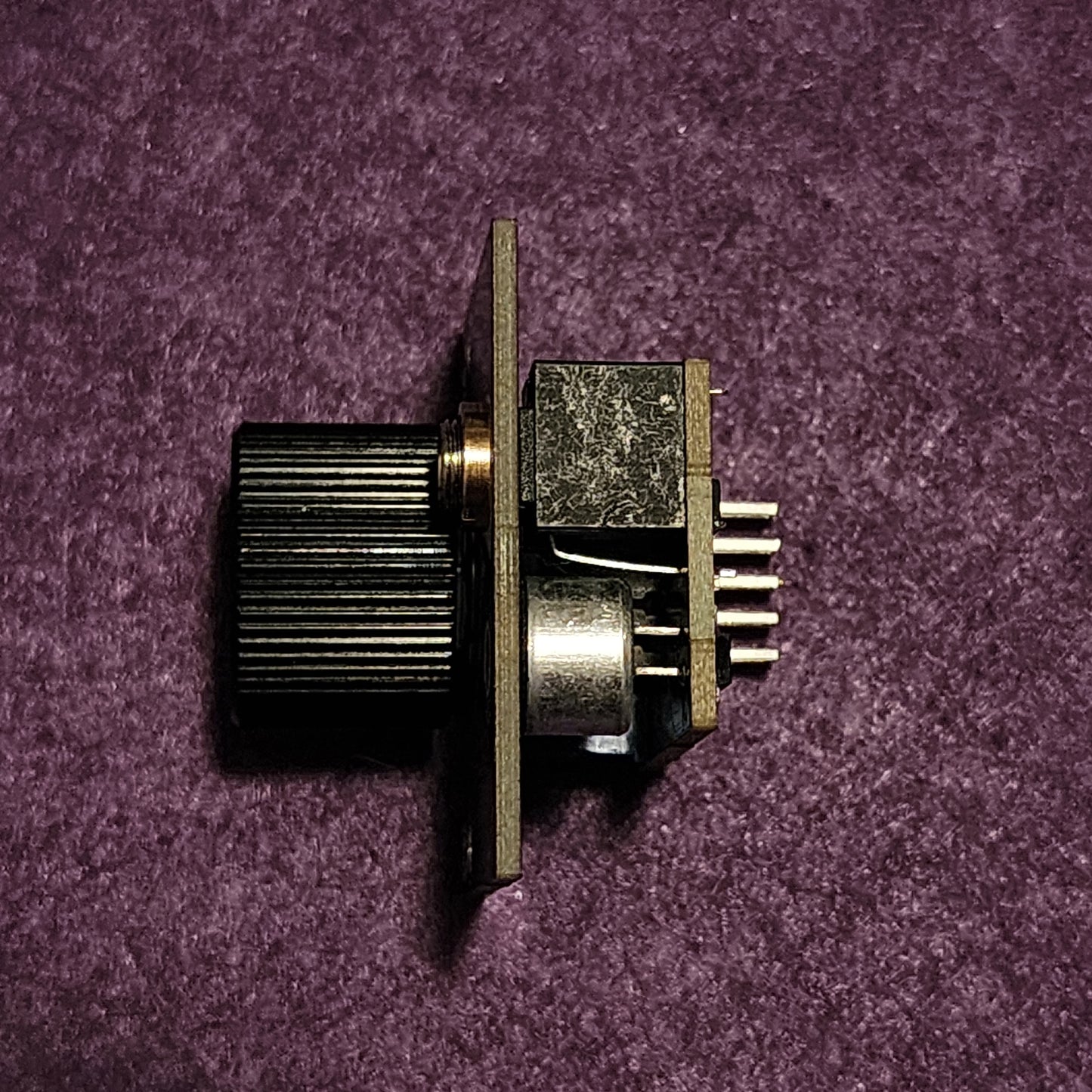

30mm (with strain-relief)
25mm (with no strain-relief)

Either Way power:
+12v: 14mA
-12v: 5mA
+5v: N/A

Our modules DO NOT include mounting screws! With the variety of preferences and sizes, we have decided not to provide mounting screws with our modules.
