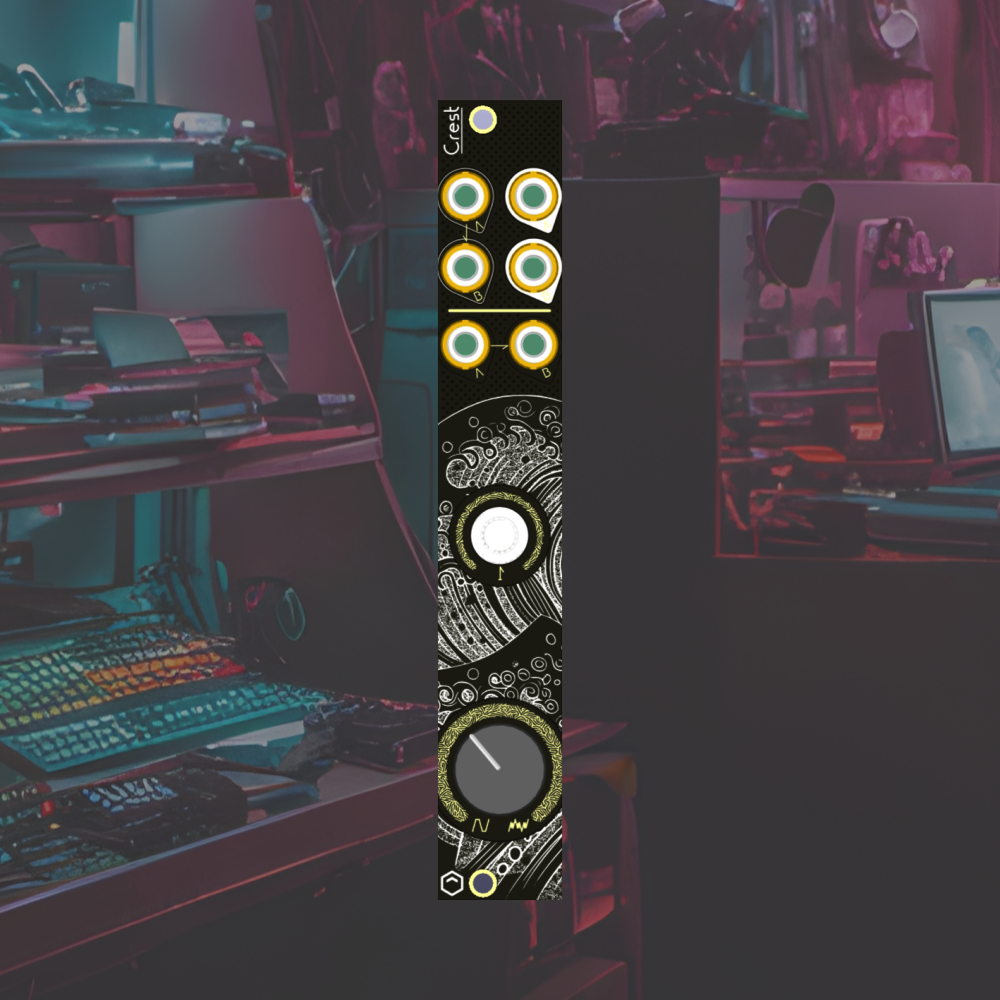

Crest (built to order)

Crest is a morphable dual soft clipper/wavefolder in 4hp. Its inputs are DC coupled, so it can be used to process slow modulation as well as fast audio rate signals such as to add upper harmonics before a filter, and the top input (A) is normalized to the bottom input (B) when the bottom is left un-patched. The drive/fold (bottom) and input level (top) knobs are shared between both channels, but the cv inputs are separate A/B input gain controls, allowing Crest to be used as a signal coloring VCA. The left (A) CV input is also normalized to the right (B) cv input so a single signal can modulate both channels at once. Finally, the input gain knob LEDs indicate the output levels for each channel - Blue for channel A, and Red for channel B.

Width:
3hp

Depth:
37mm (with strain-relief)
32mm (with no strain-relief)

Either Way power:
+12v: tbd (very low - likely less than 30ma)
-12v: tbd (very low - likely less than 15ma)
+5v: N/A

Our modules DO NOT include mounting screws! With the variety of preferences and sizes, we have decided not to provide mounting screws with our modules.

NOTE: Because this is a built-to-order item, there will be some additional delay before shipment. We will try to get these built and shipped as quickly as possible, but please understand this may take some time.
