Bib (built to order)

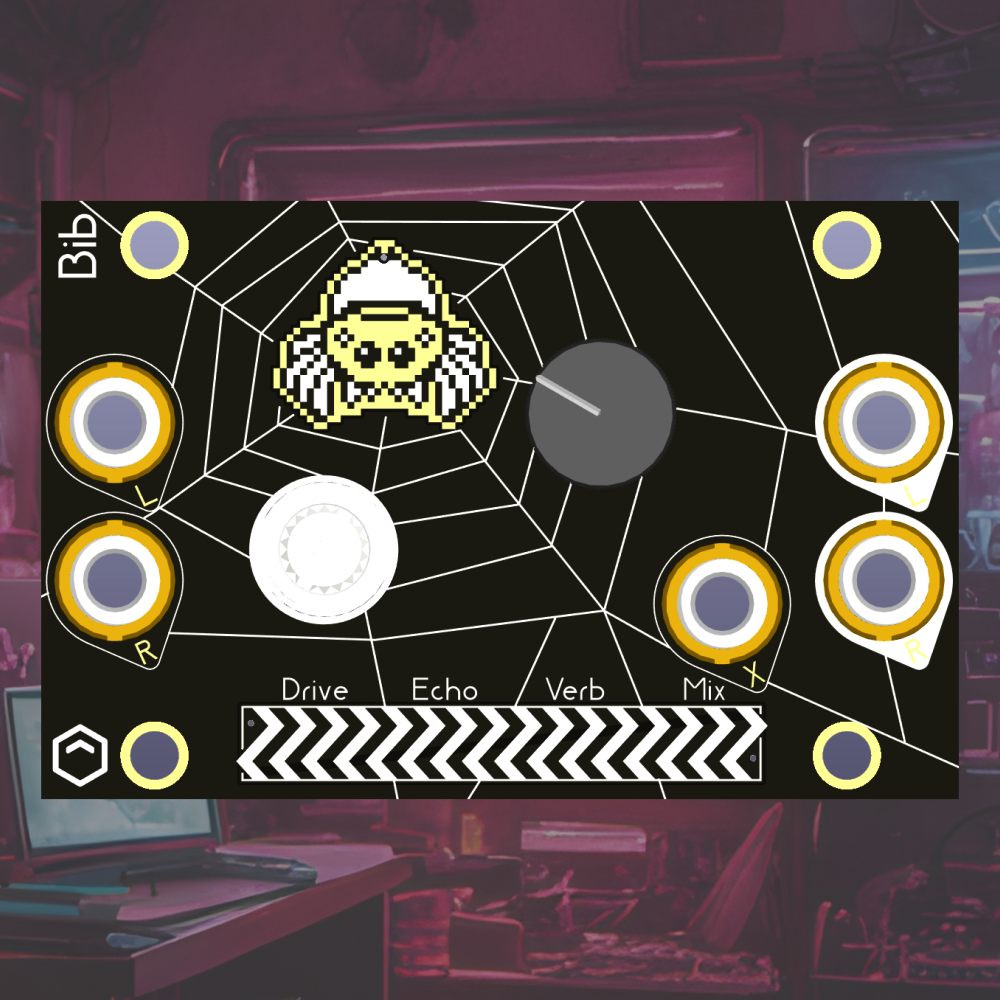

Our first collaboration with Alex Evans - creator of Plinky (www.plinkysynth.com)! Bib is a shy spider with a big heart. She first drives the signal (red page), then feeds it through a stereo delay (green page), then reverb (blue page), then finally a wet/dry mix and final output volume control (white page). Bib has a rear-panel 6 pin audio header compatible with Intellijel and other makers' case jacks and jack modules, one TRS stereo input and one TRS stereo output which can drive line or headphones with ease. Tap on the spider to set the delay tempo, long press (pressure sensitive!) to set the reverb shimmer amount, and drag across the touch strip at the bottom of the panel to influence the delay, like touching the tape of a tape delay. Select a page to edit by touching one of the four sections on the touch strip, and assign the CV input by tapping the strip repeatedly (led will blink) then turning any knob(s) you want it to control.

Width:
12hp

Depth: (NOTE: our assembled units are slightly shallower than kit ones due to a slightly different assembly method)
37mm (with strain-relief)
32mm (with no strain-relief)

Either Way power:
+12v: 107mA
-12v: 4mA
+5v: N/A

Manual:
https://plinkysynth.com/docs/bib-manual

Our modules DO NOT include mounting screws! With the variety of preferences and sizes, we have decided not to provide mounting screws with our modules.

NOTE: Because this is a built-to-order item, there will be some additional delay before shipment. We will try to get these built and shipped as quickly as possible, but please understand this may take some time.
